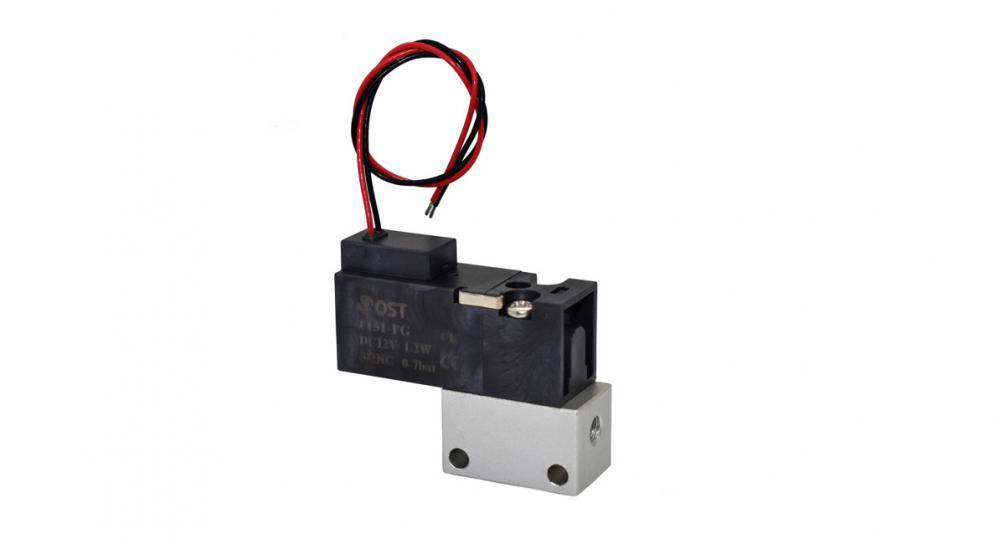

GENERAL DATA OF T15 VALVES Valve function3/2N.C.3/2N.O.2/2N.C.2/2N.O.Media Compressed air Inert gasesLubricationNot necessary Ambient and media temperature-10℃~+50℃Working pressure0~7barOrifice size ¢1.6mmflow value at 4 bar(direct emptying test)80L/min COIL DATA OF T10 VALVESElectrical connection Vertical type(Ltype)Horizontal type(M type) Direct line type(G type) Nominal voltageDC24V、DC12VVoltage tolerance±10% Duty cycleED100%Insulation classHDegree of pretectionIP50Response timeLess than 10msLifetime expectancyMore than 30 millon times
GENERAL DATA OF T15 VALVESValve function3/2N.C. 3/2N.O.2/2N.C.2/2N.O.MediaCompressed air Inert gasesLubricationNot necessaryAmbient and media temperature -10℃~+50℃Working pressure0~7barOrifice size¢2.0mmflow value at 4 bar(direct emptying test)100L/minCOIL DATA OF T10 VALVESElectrical connectionVertical type(Ltype)Horizontal type(M type)Direct line type(G type)Nominal voltage DC24V、DC12VVoltage tolerance±10% Duty cycleED100%Insulation classHDegree of pretectionIP50Response timeLess than 10msLifetime expectancyMore than 30 millon times
